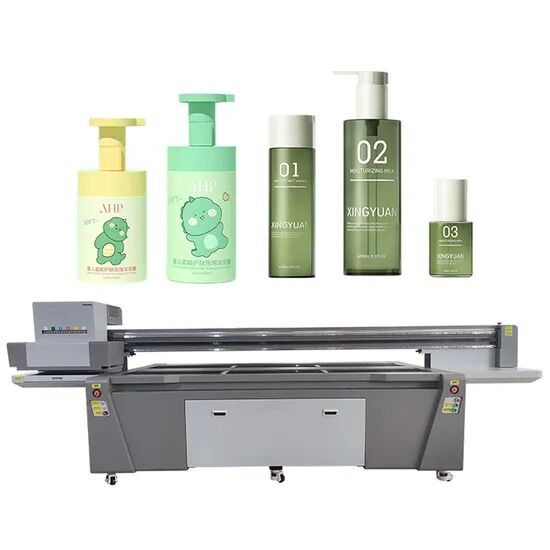

Cylinder Screen Printer for Custom UV Printing Solutions
Advanced Printing Features
- High Precision: 3.5pl droplet size provides optimal throughput and print quality for various applications
- High Resolution: Multiple inkjet schemes available for different printing materials with accurate colors, distinct layers, and uniform transitions
- Intelligent Maintenance: Automatic nozzle flashing and moisture retention during non-working periods prevents blockage from ink curing
Technical Specifications - CF-2510 (Duplex)
| Specification |
Details |
| Nozzle Selection |
Ricoh GEN 5i |
| Print Size |
235cm × 63.2cm |
| Printing Height |
0-15cm (Customizable) |
| Equipment Size |
412cm × 159cm × 144cm |
| Equipment Weight |
860kg |
| Printing Software |
Photoprint / PrintFactory |
| Ink Type |
LED Environmental Protection UV Ink |
| Ink Colors |
W + CMYK + Varnish |
| Maximum Power |
3000W |
| Effective Orifice |
1280 |
| Ink Drop Volume |
3.5PL |
| Nozzle Length |
27MM |
| Single Nozzle Color |
4 |
| Rated Voltage |
240V 50/60HZ |
Manufacturer Profile
Guangzhou Skydeekenutek Co., Ltd specializes in distribution and wholesale of UV printers, single-pass UV printers, UV flatbed printers, UV mesh belt printers, banner printers, and crystal label printers. Our 2500 m² factory in Panyu, Guangzhou employs over 10 R&D staff and 150 workers. We maintain ISO certification with strict quality control and production management, supporting OEM and ODM services. With over 10 years of UV printer manufacturing experience, we've received positive feedback from clients worldwide and export to France, Germany, Vietnam, India, and other countries. Our products carry CE and RoHS certifications.
Packaging & Shipping
Certifications
Frequently Asked Questions
Q1: Do I need white ink and varnish ink?
A: White ink enables printing on virtually any media by generating high-quality graphics on hard or soft materials like acrylic boards or backlit films, and can serve as a primer for non-white materials. Varnish enhances picture brightness and extends UV ink fade resistance.
Q2: What materials can UV flatbed printers print on?
A: All flatbed media including PP/PVC boards, KT boards, acrylic, plexiglass, metal, tiles, phone cases, and wood boards. UV printing eliminates coating, fading, and blistering issues while saving significant working hours. Suitable for rigid identification boards, hard cardboard, corrugated boxes, glass, tiles, wood, furniture, and custom decoration markets.
Q3: Which languages does the RIP installation interface support?
A: Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, Italian, English, Simplified Chinese, and Traditional Chinese.
Q4: How is the after-sales service?
A: Our experienced technicians provide comprehensive technical support, including operational training until full proficiency is achieved. Our technical team may travel internationally for machine testing and repair services.
Q5: Regarding printer maintenance
A: We recommend daily ink purging when starting the printer. For periods exceeding 10 days of non-use, clean the print head with cleaning fluid and maintain nozzle moisture.
Q6: Are you a factory or a foreign trade company?
A: We are a factory, enabling us to offer competitive pricing and high-quality services directly.
